Technical data
Slip resistance & test data.
Everblue 20mm outdoor porcelain, tested to EN ISO and ANSI standards. The figures below are the measured results, not marketing claims.
R11
Slip resistance, shod ramp
DIN EN 16165:2023-02
0.65
Dynamic coefficient of friction (DCOF)
ANSI A326.3
What the ratings mean
- R11
- The shod ramp test (DIN EN 16165) measures the angle at which a person in standard work footwear starts to slip on an oiled surface. R11 covers 19–27°, the class normally specified for outdoor walkways, pool surrounds and commercial kitchens.
- DCOF 0.65
- The dynamic coefficient of friction under ANSI A326.3 is the standard North American measure. The threshold for level interior spaces expected to be walked on wet is 0.42; Everblue measures 0.65 and is rated for exterior wet use.

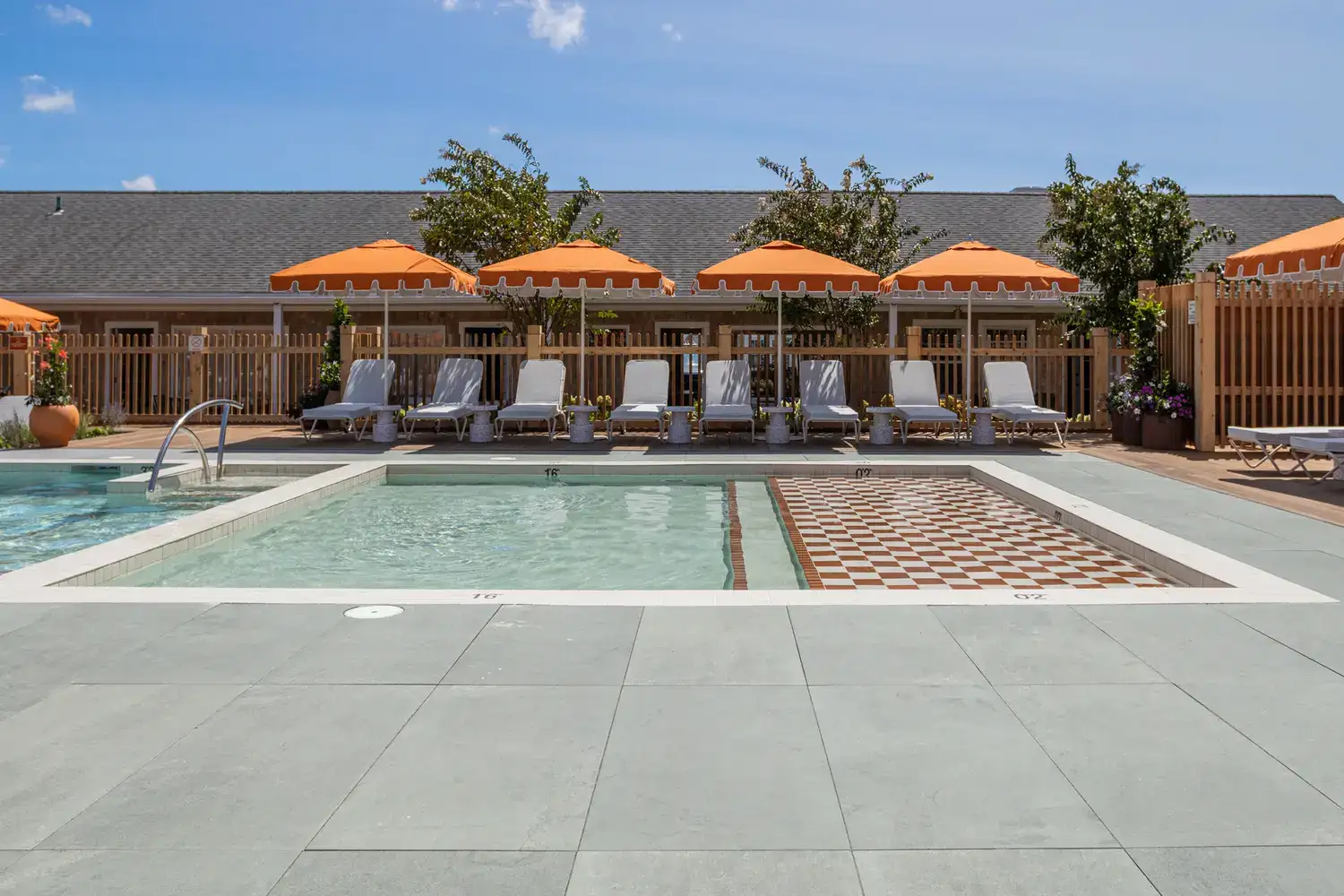

Everblue is rated for exterior wet use, which is the rating that matters around pools, on steps and on any surface that sees rain or irrigation.
Technical data sheet
Full test results.
Issued October 5, 2026. This report covers Smoke, Dark Select and Storm Gray.
- Product
- Dry-pressed ceramic tile, non-colored body
- Classification
- EN 14411 BIa, Annex G — low water absorption (E ≤ 0.5%)
- Thickness
- 20 mm (¾″)
- Sizes
- 12″ × 12″ · 24″ × 12″ · 24″ × 24″ · 48″ × 24″
- Surfaces
- Structure · Smooth
- Use
- Exterior, wet areas (EXT)
| Property | Test standard | Requirement | Result |
|---|---|---|---|
| Slip resistance, shod ramp | DIN EN 16165:2023-02 | — | R11 |
| Dynamic coefficient of friction (DCOF) | ANSI A326.3 | — | 0.65 — rated Exterior Wet (EXT) |
| Water absorption | EN ISO 10545-3 | ≤ 0.5% | 0.1% |
| Modulus of rupture | EN ISO 10545-4 | 35 N/mm² (approx. 5,100 psi) | 45 N/mm² (approx. 6,500 psi) |
| Breaking strength | EN ISO 10545-4 | 1,300 N (approx. 292 lbf) | 10,000 N (approx. 2,248 lbf) |
| Frost resistance | EN ISO 10545-12 | Required | Resistant |
| Abrasion resistance (PEI) | EN ISO 10545-7 | Required | Smoke 3/1500 · Dark Select 4/2100 · Storm Gray 4/6000 |
| Resistance to household chemicals | EN ISO 10545-13 | min. B | Class A |
| Chemical resistance (acids and alkalis) | EN ISO 10545-13 | Declared | LA · HB |
| Stain resistance | EN ISO 10545-14 | min. 3 | Class 4 |
| Crazing resistance | EN ISO 10545-11 | Required | Resistant |
| Mohs hardness | EN 101 | — | 7 |
| Thermal shock resistance | EN ISO 10545-9 | Required | Resistant |
Test data held on file by Evercore Surfaces. Declaration of performance available on request. Figures for the rest of the collection are in the installation guide and on each colorway page.
